Medical Devices

Production items

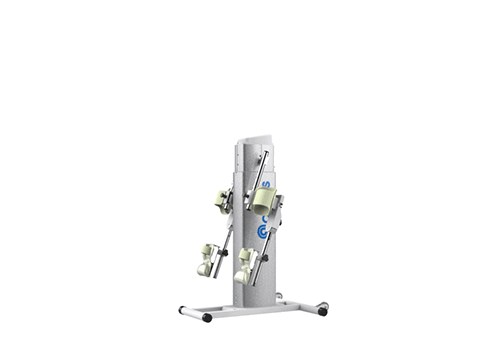

  • ARTUS-704ES

    ARTUS-704ES is a continuous passive motion device used for muscles reconstruction and joint movement recovery. A variety of accessories can be mounted on its mechanical arms, depending on the type of rehabilitative movement chosen. It is possible to program various functions on the fixed touch screen controller.

    1. It‘s robust structure provides a sense of stability by reducing product shake during exercise.
    2. Both right and left arm frames are installed for convenient use.
    3. Easy height adjustment by the electric height control function.

  • Model ARTUS-704ES
    Power Supply 220Vac, 60Hz
  • Speed 1 ~ 6   level
    Timer 1 ~ 99   min
    Count 1 ~ 99
    Pause 0 ~ 9   sec
  • Shoulder Flexion/Extension 20° ~ 180°
    Abduction/Adduction 20° ~ 160°
    Rotation -60° ~ 90°
    Elbow Flexion/Extension 0° ~ 150°
    Speed 75°/min ~ 150°/min
    Weight 25kg
    Height of gear shaft 790 ~ 1040mm
    Dimensions [WxDxH] 565 x 690 x 950 [mm]
  • This product is a medical device, so please read the precautions for instructions before use it. Review number 2020-I10-37-3406 2020-I10-37-3407

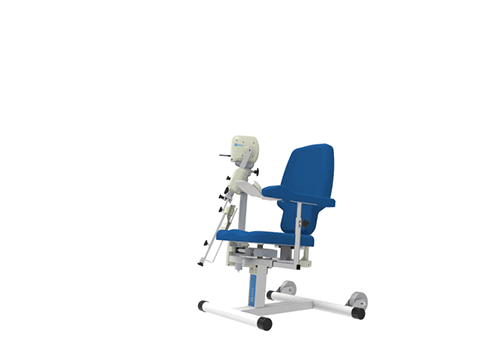

  • ARTUS-703S

    ARTUS-703S is a continuous passive motion device used for muscles reconstruction and joint movement recovery. It has excellent movement stability due to the integrated structure of chair and the driving unit. It provides options for combining exercise of shoulder and elbow joints or individual joint exercise.

    1. Easy to switch the arm frame to right side or left side by using a front rotation method.
    2. Various joint exercise and angles are provided.
    3. The height of shoulder is adjustable with a simple operation.

  • Model ARTUS-703S
    Power Supply 220Vac, 60Hz
  • Speed 1 ~ 5   level
    Timer 1 ~ 99   min
    Count 1 ~ 99
    Pause 0 ~ 9   sec
  • Flexion/Extension 20° ~ 180°
    Abduction/Adduction 20° ~ 160°
    Rotation -60° ~ 90°
    Elbow 0° ~ 150°
    Synchronized
    abduction
    and Rotation
    Flexion/Extension 20° ~ 160°
    Internal/External Rotation -30° ~ 90°
    Speed [Flexion] 60°/min ~ 200°/min
    Speed [Rotation] 75°/min ~ 200°/min
    Weight 38kg
    Dimensions [WxDxH] 706 x 647 x 925 [mm]
  • This product is a medical device, so please read the precautions for instructions before use it. Review number 2020-I10-37-3407

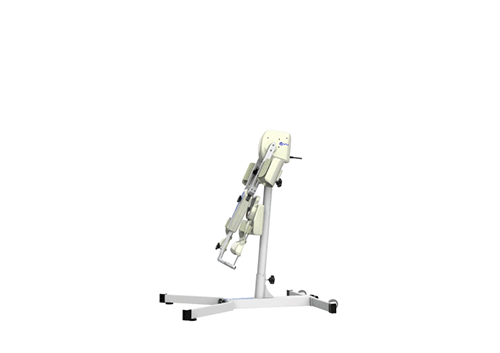

  • ARTUS-701ES

    ARTUS-701ES is a continuous passive motion device used for muscles reconstruction and joint movement recovery. ARTUS-701ES is a lightweight product with excellent mobility for convenient use. The overall length of just 79cm facilitates easy set up and storage.

    1. Frequently used settings can be saved by the program edit mode.
    2. Allows to select speed level : Uniform mode / Accelerated mode.
    3. Provides constant and accelerated movement methods.

  • Model ARTUS-701ES
    Power Supply 220Vac, 60Hz
  • Speed 1 ~ 6   level
    Timer 1 ~ 99   min
    Count 1 ~ 99
    Pause 0 ~ 9   sec
  • Flexion/Extension 20° ~ 180°
    Abduction/Adduction 20° ~ 160°
    Speed [Flexion] 48°/min ~ 150°/min
    Weight 13.5kg
    Dimensions [WxDxH] 670 x 790 x 910 [mm]
  • This product is a medical device, so please read the precautions for instructions before use it. Review number 2020-I10-37-3405
  • ARTUS-702S

    ARTUS-702S is a continuous passive motion device used for muscles reconstruction and joint movement recovery. It has excellent movement stability due to the integrated structure of chair and the driving unit.

    1. Easy to switch the arm frame to right side or left side by using a front rotation method.
    2. The height of shoulder is adjustable with a simple operation.




  • Model ARTUS-702S
    Power Supply 220Vac, 60Hz
  • Speed 1 ~ 5   level
    Timer 1 ~ 99   min
    Count 1 ~ 99
    Pause 0 ~ 9   sec
  • Flexion/Extension 20° ~ 180°
    Abduction/Adduction 20° ~ 160°
    Speed [Flexion] 60°/min ~ 200°/min
    Weight 35kg
    Dimensions [WxDxH] 706 x 647 x 925 [mm]

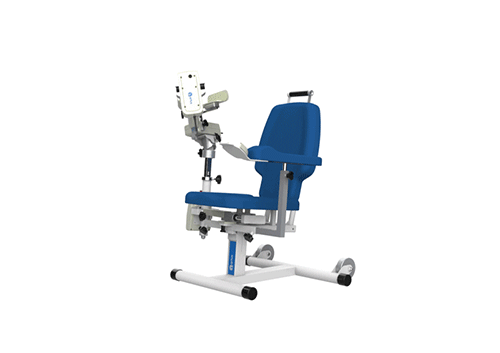

  • ARTUS-501E

    ARTUS-501E is a continuous passive motion device used for muscles reconstruction and joint movement recovery. It provides options for combining exercise of elbow and wrist joints or individual joint exercise.

    1.Progressive and oscillation modes are available.
    2. A dedicated touch screen controller enables convenient exercise setting and status check.
    3. The height of elbow is easy to adjust with a simple operation.

  • Model ARTUS-501E
    Power Supply 220Vac, 60Hz
  • Speed 1 ~ 5   level
    Timer 1 ~ 99   min
    Count 1 ~ 99
    Flexion/Extension/Pause 0 ~ 9   sec
  • Flexion/Extension 0° ~ 135°
    Internal/External Rotation -90° ~ 50°
    Synchronized
    abduction
    and Rotation
    Elbow 0° ~ 135°
    Wrist Rotation -90° ~ 40°
    Speed [Elbow] 60°/min ~ 200°/min
    Speed [Wrist Rotation] 75°/min ~ 200°/min
    Weight 33kg
    Dimensions [WxDxH] 706 x 647 x 835 [mm]
  • This product is a medical device, so please read the precautions for instructions before use it. Review number 2020-I10-37-3404

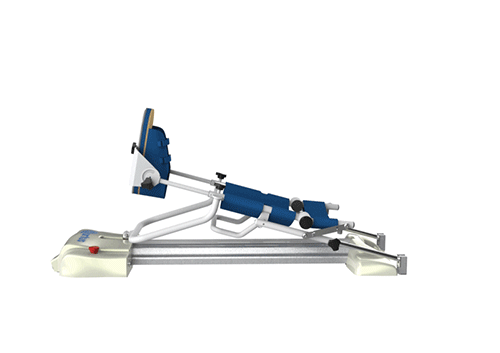

  • ARTUS-903K

    ARTUS-903K is a continuous passive motion device used for muscles reconstruction and joint movement recovery. The range of motion can be set from -10 to 140 degrees according to the patient’s condition. 903K is easy to carry due to small size and lightweight.

    1. Progressive Mode: It is used by adjusting the angle of movement by 1 degrees.
    2. Oscillation Mode: It is used for repeated exercise as many times as the angle set in the upper/lower angle.
    3. Provides constant and accelerated movement methods.
    4. Easy operation with customized touch screen.
    5. Useful for rental home service.

  • Model ARTUS-903K
    Power Supply 220Vac, 60Hz
  • Speed 1 ~ 5   level
    Timer 1 ~ 99   min
    Number of Motion 1 ~ 99
    Pause 0 ~ 9   sec
  • Motion Range -10° ~ 140°
    Speed 75° ~ 130° /min
    Angle of Progressive 5° ~ 15°
    Angle of Oscillation 5° ~ 15°
    Count [Progressive] 3 ~ 10
    Count [Oscillation] 3 ~ 10
    Weight 12kg
    Dimensions [WxDxH] 325 x 1025 x 500 [mm]
  • This product is a medical device, so please read the precautions for instructions before use it. Review number

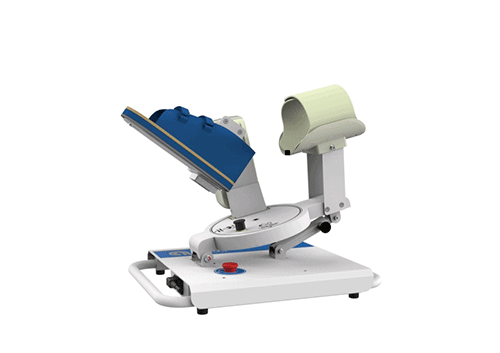

  • ARTUS-301A

    ARTUS-301A is a continuous passive motion device used for muscles reconstruction and joint movement recovery. This device provides fast and easy features to use. Two exercises (plantar flexion, dorsiflexion, eversion, inversion) are possible in bed or while sitting on a chair.

    1. Portable Ankle Device with small size and light weight.
    2. Easy to change exercise mode (Dorsiflexion / Plantar flexion mode, Abduction / Adduction mode)
    3. Easy operation with touch panel.

  • Model ARTUS-301A
    Power Supply 220Vac, 60Hz
  • Speed 1 ~ 5   level
    Timer 1 ~ 99   min
    Number of Motion 1 ~ 99
    Pause 0 ~ 9   sec
  • Dorsiflexion/Plantarflexion -50° ~ 50°
    Abduction/Adduction -35° ~ 35°
    Speed 75° ~ 150° / min
    Angle of Progressive 5° ~ 15°
    Angle of Oscillation 5° ~ 15°
    Count [Progressive] 3 ~ 10
    Count [Oscillation] 3 ~ 10
    Weight 9kg
    Dimensions [WxDxH] 353 x 467 x 430 [mm]
  • This product is a medical device, so please read the precautions for instructions before use it. Review number 2020-I10-37-3403
