Equipments
- SMT Line
- Manual Line
Manufacture Process

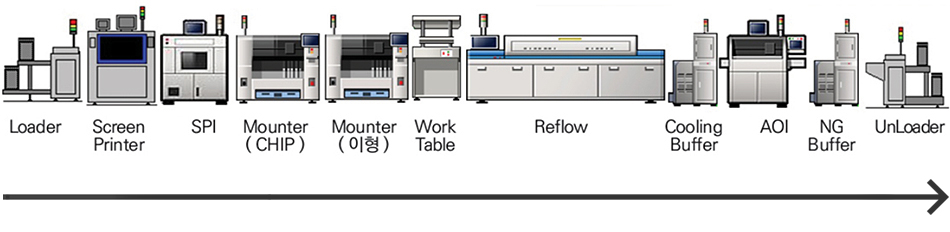

SMT Line Layout
Equipment
Loader
MODELALD-12SY
MakerYJ-LINK
PCB Size(mm)440*330
Screen Printer
MODELHP-520S
MakerSJ Inno Tech
PCB Size(mm)520*420
SPI
MODELSIGMA X
MakerPARMI
PCB Size(mm)(mm)480*350
Mount Chip
MODELSM411
MakerSamsung Techwin
PCB Size(mm)610*460
Mount Multi
MODELSM421
MakerSamsung Techwin
PCB Size(mm)610*460
Work Table
MODELHP-520S
MakerSJ Inno Tech
PCB Size(mm)520*420

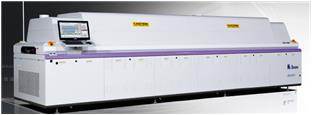

Reflow
MODELN70-I102H
MakerTSM
PCB Size(mm)540*410
Cooling Conveyor
MODELSCL-900
MakerSJ Inno Tech
PCB Size(mm)540*410
AOI
MODELQX500D
MakerHuman Tech
PCB Size(mm)308*457
NG-Buffer
MODELKRB-900
MakerKiheung FA
PCB Size(mm)308*457
UN_Loader
MODELAUD-12SY
MakerYJ-LINK
PCB Size(mm)440*300
Nitrogen Generator
MODELTPM-N15RT-99
MakerTSM
PCB Size(mm)-
Manufacture Process

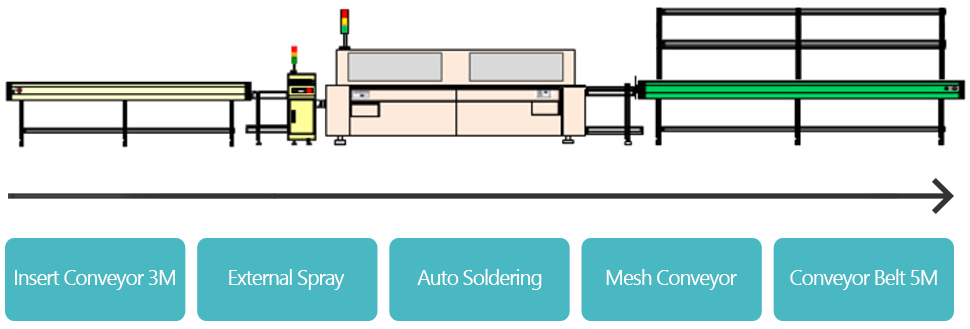

Manual Production Line Layout
Equipment
External Flux
MODELAUD-12SY
MakerYJ-LINK
PCB Size(mm)440*330
Wave Soldering
MODELHS04-3000
MakerKSM
PCB Size(mm)-
Robot Solder
MODELLETHER
MakerFoung Four
PCB Size(mm)440*300
